Introduction
The AT360 is a super performance GNSS Antenna that can track GPS, GLONASS, BDS, Galileo, L-Band and SBAS. Featuring with high gain, low noise amplifier, high sensitivity and strong tracking capability, AT360 is a good choice for users to develop systems or solutions for land survey, agriculture, construction and deformation monitoring.


  • Support GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3, Galileo E1/E5a/E5b, SBAS and L-Band
  • Low noise amplifier and high gain
  • Millimeter level phase center error with outstanding stability and repeatability
  • Strong capability of tracking satellites at low elevation angle
  • Superior waterproof and dustproof design
01
Full-constellation & Multi-frequency
The AT360 antenna excels in tracking all running and planned constellations including GPS, GLONASS, BDS, Galileo, QZSS, IRNSS, L-Band, and SBAS. This versatility makes it particularly suitable for applications requiring precise global positioning, such as land survey, agriculture, construction, and deformation monitoring.
02
High Performance
It features a low noise amplifier and high gain, enabling it to maintain strong signal reception and tracking capabilities even at low elevation angles. Moreover, its millimeter-level phase center error enhances measurement accuracy and stability.
03
IP67
The AT360 boasts superior waterproof and dustproof capabilities, rated at IP67. This robust design guarantees its performance in various environmental conditions, making it an ideal choice for outdoor applications where exposure to water and dust is a common challenge.
Product Parameter
Antenna
LNA
Physical
Environmental
Antenna
GPSL1, L2, L5
GLONASSG1, G2, G3
BeidouB1I, B2I, B3I, B1C, B2a, B2b
GalileoE1, E5a, E5b, E6c
QZSSL1, L2, L5, L6
IRNSSL5
SBASL1, L5
L-band
Nominal Impedance50Ω
PolarizationRHCP
Axial Ratio (90°)≤ 3dB
LNA
LNA Gain40dB ± 2dB
Noise Figure≤ 2dB
VSWR Output≤ 2.0
Operation Voltage3.3 - 15 VDC
Operation Current≤ 45mA
Passband Ripple± 2dB
Gain at Zenith5.5dBi
Phase Center Offset± 2mm
Physical
DimensionΦ147×67.7 mm
ConnectorTNC Female connector
Weight≤ 500g
Environmental
Operating Temperature-40°C to +85°C
Storage Temperature-55°C to +85°C
Humidity95% No-condensing
Waterproof and DustproofIP67
Download
  • SinoGNSS AT360 Geodetic Antenna.pdf(1.37MB)
    2024-05-30
    DOWNLOAD
Relevant Industries
GIS
Recommend Product
AT410 GNSS Antenna
LEARN MORE
AT600 Choke Ring Antenna
LEARN MORE
AT500 Choke Ring Antenna
LEARN MORE

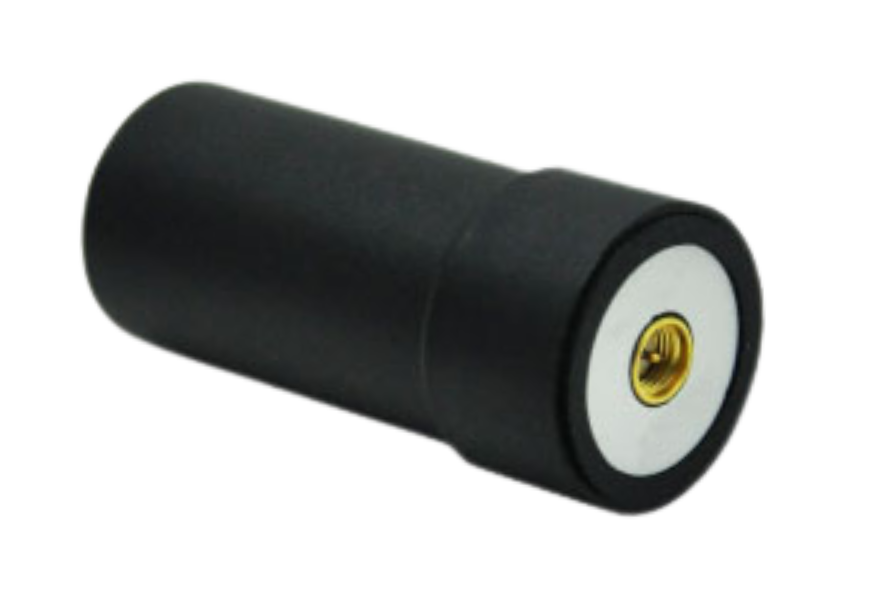

AT130 Helix Antenna
