Introduction

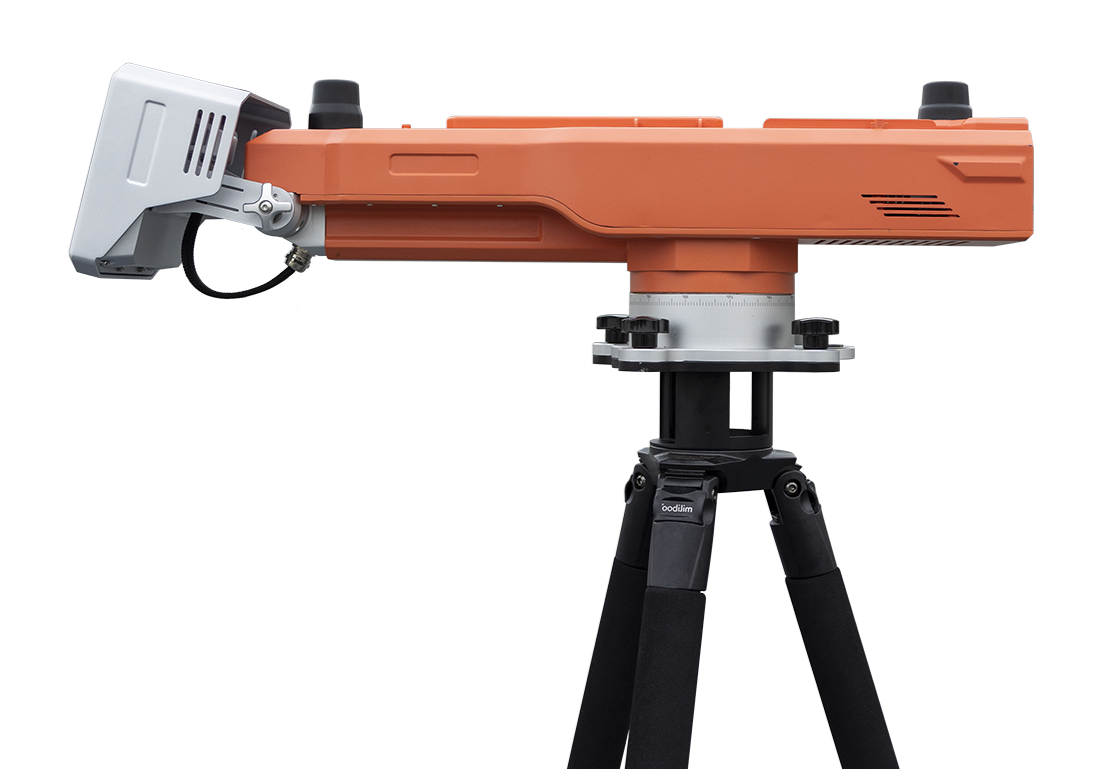

The MS-SAR5000 is an advanced slope stability monitoring radar developed by ComNav Technology Co., Ltd. This cutting-edge system is specifically designed for high-precision, real-time displacement monitoring, providing early warning capabilities for potential slope failures. Its robust technology enables accurate detection of minute movements, making it an essential tool for ensuring safety in areas prone to landslides, mining sites, construction zones, and other geologically unstable environments.

High Accuracy & Non-contact Monitoring
Real-time & Efficient
Full 360°Coverage
Highly Adaptable Power Design
Portable but Rugged Design
Multiple Deployment Modes

Surface Coverage Perception Monitoring

The ground-based arc SAR technology offers extensive coverage, allowing for long-distance monitoring (up to 5 km) with a full 360° view, operational in all weather and at any time.

Single-Device Extensive Coverage

The MS-SAR5000 can cover a large area with a single device, significantly reducing both construction and maintenance costs compared to traditional contact monitoring devices.

More Accurate and Real-Time Warning

The MS-SAR5000 provides high real-time monitoring accuracy at the sub-millimeter level, enabling rapid data collection and timely output of deformation data. This technology allows for prompt evaluation of slope stability and can issue alerts in response to sudden meteorological, climate changes, or construction impacts.

Product Parameter

Physical

Communication

Electrical

Technical

Physical

Weight	≤15kg (including main unit, scanning turn table, data processing device)
Size	800mm200mm280mm
Operational Wind Speed	Up to 100 km/h
Water- & Dustproof	IP65
Working Temperature	-40℃ to +55℃

Communication

4G	Support
Wifi	Support
Wire access	Support
100 Mbit Ethernet interfaces	Support

Electrical

Power Consumption	≤40W
Uninterruptible Power Supply (UPS)	Y
Utility Power	Support
Diesel Generator	Support
Solar Panels	Support

Technical

Operating Range	50-5000m
Accuracy	≤0.1mm
Range Resolution	≤0.2m
Angular Resolution	≤5mrad
Data Update Rate	≤1 time/min
Horizontal Coverage	360°
Vertical Adjustment	30°(support±30°vertical adjustment)
