Introduction

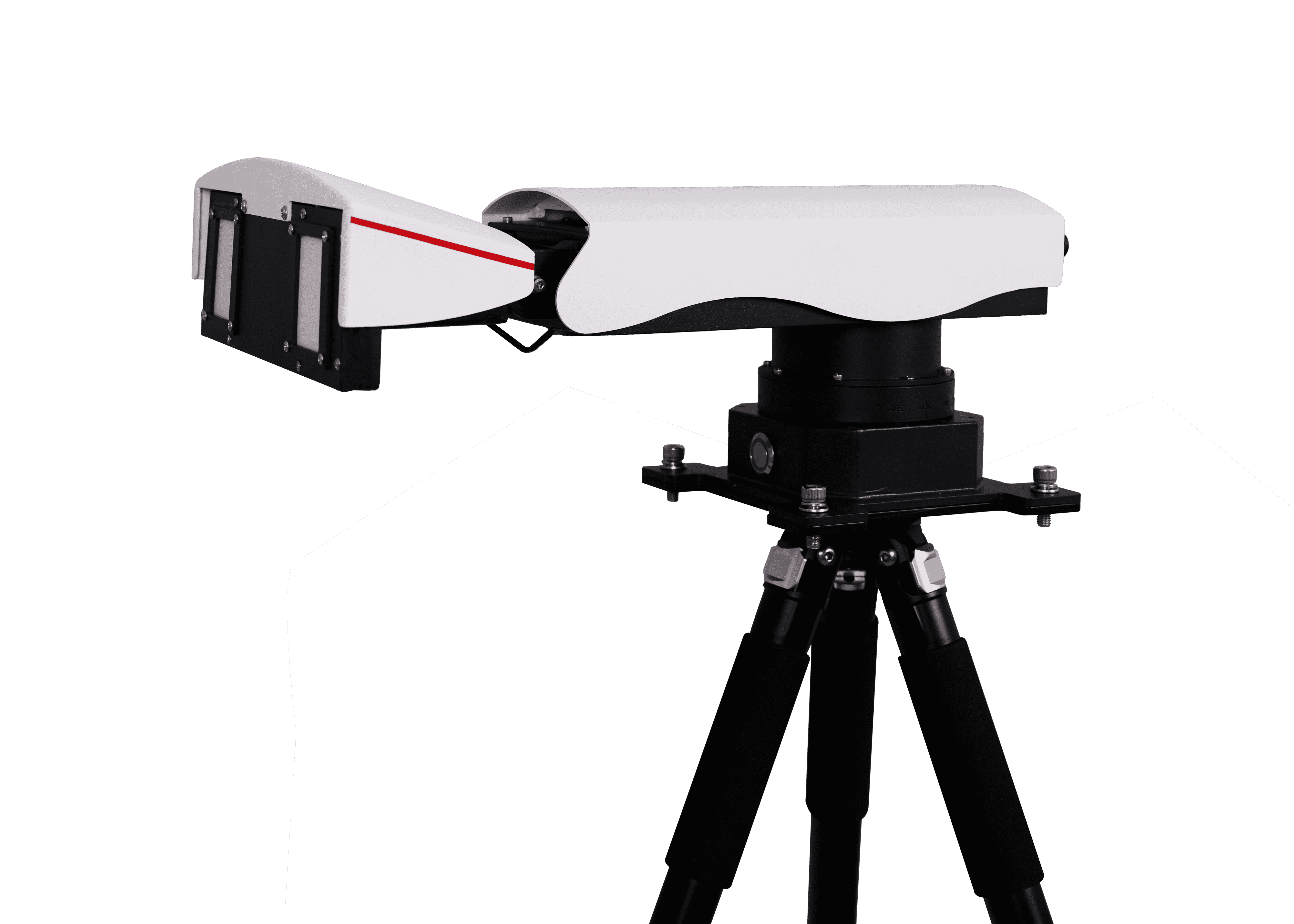

The Universal Slope Monitoring Radar MS-SAR1000 is based on Synthetic Aperture Radar (SAR) imaging technology and interferometric/ differential interferometric techniques. It is specifically designed for monitoring and alert of geohazard risks such as landslides, collapses, and cave-ins. The radar delivers 360° sub-millimeter deformation measurement and 24/7 unmanned early warnings for geohazard risks.


  • Universal Equipment for Geohazards
  • Arc lmaging and Continuous Wave Radar
  • No Protective Setup Required
  • Integrated 4G Communication and Wireless Routing Function
  • All-weather, All-time, Area-based Monitoring
  • Lightweight Design
01
No Protective Setup Required
Includes multi-point monitoring capabilities with strong penetration, unaffected by rain, snow, fog, smoke, bright light, or night time conditions. With lP65 protection, it works normally at -40°C and with stands up to level 12 wind resistance.
02
Non-contact remote sensing scanning
The MS-SAR1000 is an arc imaging and continuous wave radar. The radar offers sub-millimeter level deformation measurement, capable of monitoring 360° or a specified sector, with no angular or distance blind spots.
03
Monitoring Intelligent Alert Cloud Platform
Monitoring Intelligent Alert Cloud Platform integrates compatibility with multiple sensor types and a built-in landslide alert model, enabling multiple alarm methods, 3D display of monitoring results, alarm area shielding, and detailed monitoring report generation.
Product Parameter
Physical
Communication
Power Supply
Radar Sensor
Physical
Weight≤5kg
Maximum Size of Radar Host≤0.6m
Working Temperature-40℃~+65℃
Water- & DustproofIP65
Windproof≥12 Level
Power Consumption≤15W
Front-End Calculation

Host adopts edge-front calculation

completing all processing internally without the need for external processing equipment

Communication
4GBuilt-in
5GBuilt-in
Mobile CommunicationY
WAN CommunicationY
Satellite CommunicationY
Local Device Networking and InterconnectionSupport
Power Supply
MainsSupport
SolarSupport
BatteriesSupport
Overvoltage ProtectionY
Undervoltage ProtectionY
Radar Sensor
Working Frequency BandKu Band
Operating Range≥800m
Horizontal Coverage360° (Horizontal, or specified sector）
Deformation Accuracy≤0.5mm（Any angle within 360° azimuth）
Distance Resolution≤0.3m
Angular Resolution≤9mrad
Data Acquisition Period≤1min
Pitch Adjustment Angle1000 m
Data Upload Rate1min~24h (Configurable)
Maximum Altitude≥6000m
Download
  • SinoGNSS MS-SAR1000 Slope Lope Stability Monitoring Radar_EN.pdf(3.96MB)
    2025-08-14
    DOWNLOAD
