Introduction

The XE100 Guidance System is developed and manufactured by ComNav Technology Ltd. for excavators. The system employs high-precision GNSS positioning and heading technology, and inertial sensors as well. It can provide precise guidance to drivers to control the bucket for tasks, such as levelling, slope cutting, digging, etc. Efficiency and productivity can be improved by eliminating the need for manual staking. Compared with traditional operation, it can achieve centimeter-level accuracy in less time, decrease rework, significantly increasing efficiency and ensuring higher quality.

Features

Precise Guidance

The integration of SinoGNSS K8 GNSS high precision modules allows positioning accuracy within ±3cm, heading accuracy up to 0.2°, which meets the requirements of most construction projects.
Extended Durability

The XE100 is designed to withstand the harsh jobsites. Dust and waterproof components, robustdesign, rugged sunlight-readable touchscreencan deal with various high-intensity shock andvibration industrial environments.
Easy to Expand

The system adopts a low-coupling modularstructure design and provides a standarddevelopment interface, which can realizemulti-sensor and controller expansion and beeasily applied to other construction machinery.opening up more infinite possibilities.
Intuitive Interface

It supports CSV (output from SurveyMaster)and standard AutoCAD DXF design files. Withintuitive software and user-defined configura-tion, drivers can complete projects quickly andaccurately, even for those with less experi-ence.

Software

Software Interfaces of XE100 Guidance System

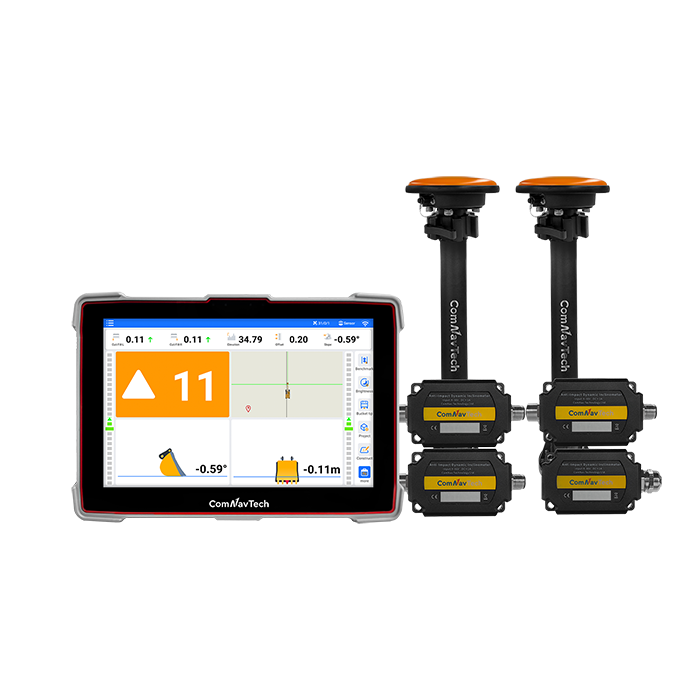

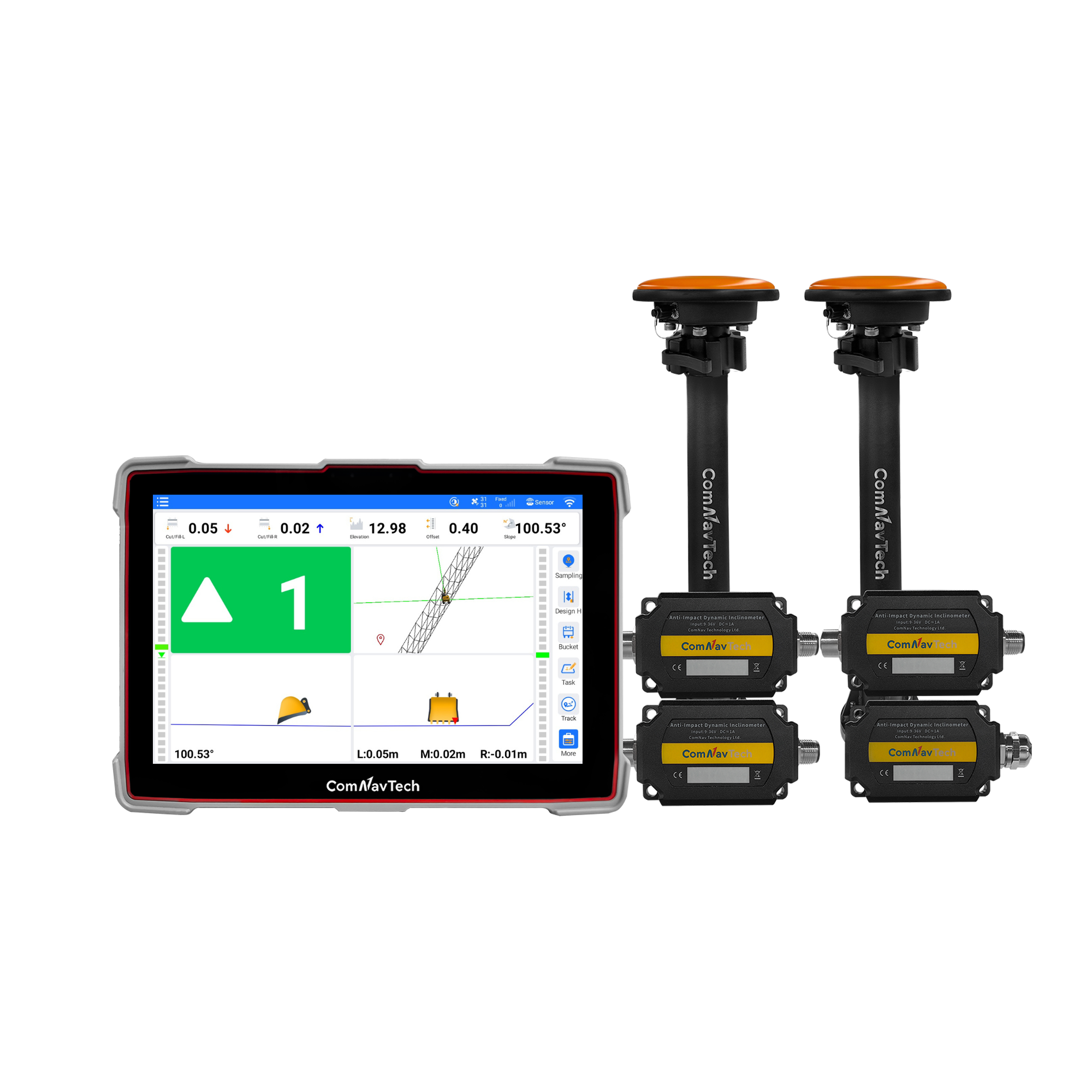

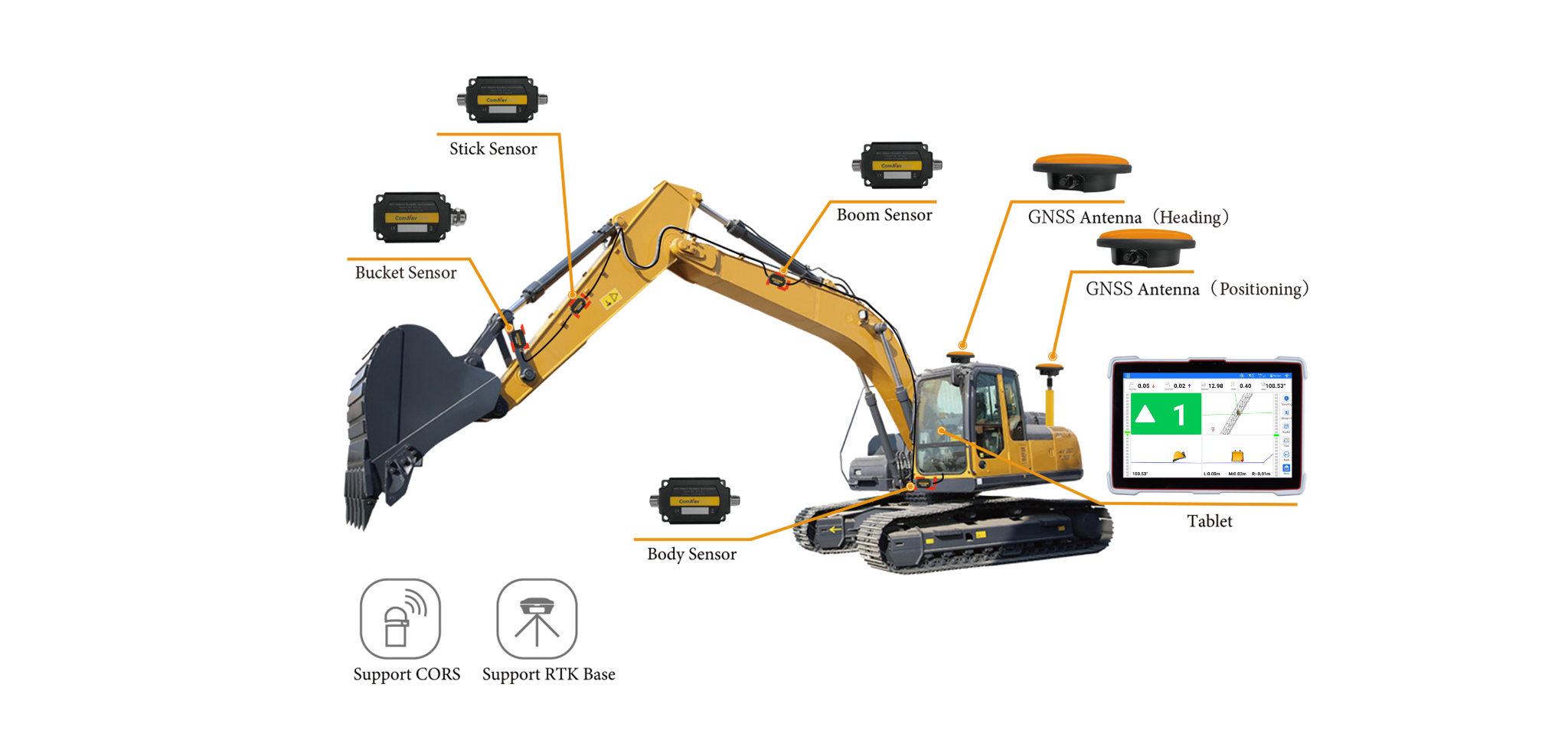

System Components

Advantage

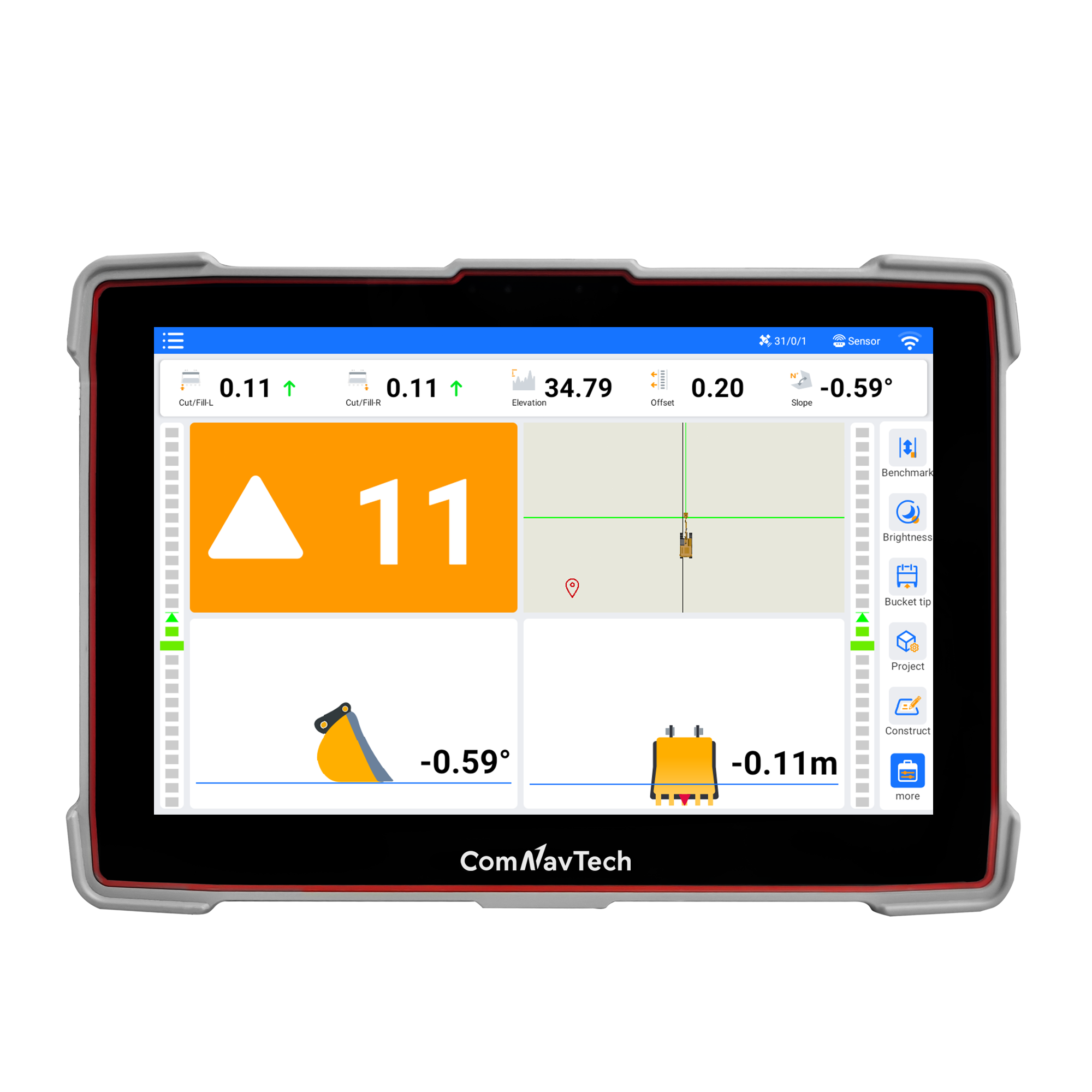

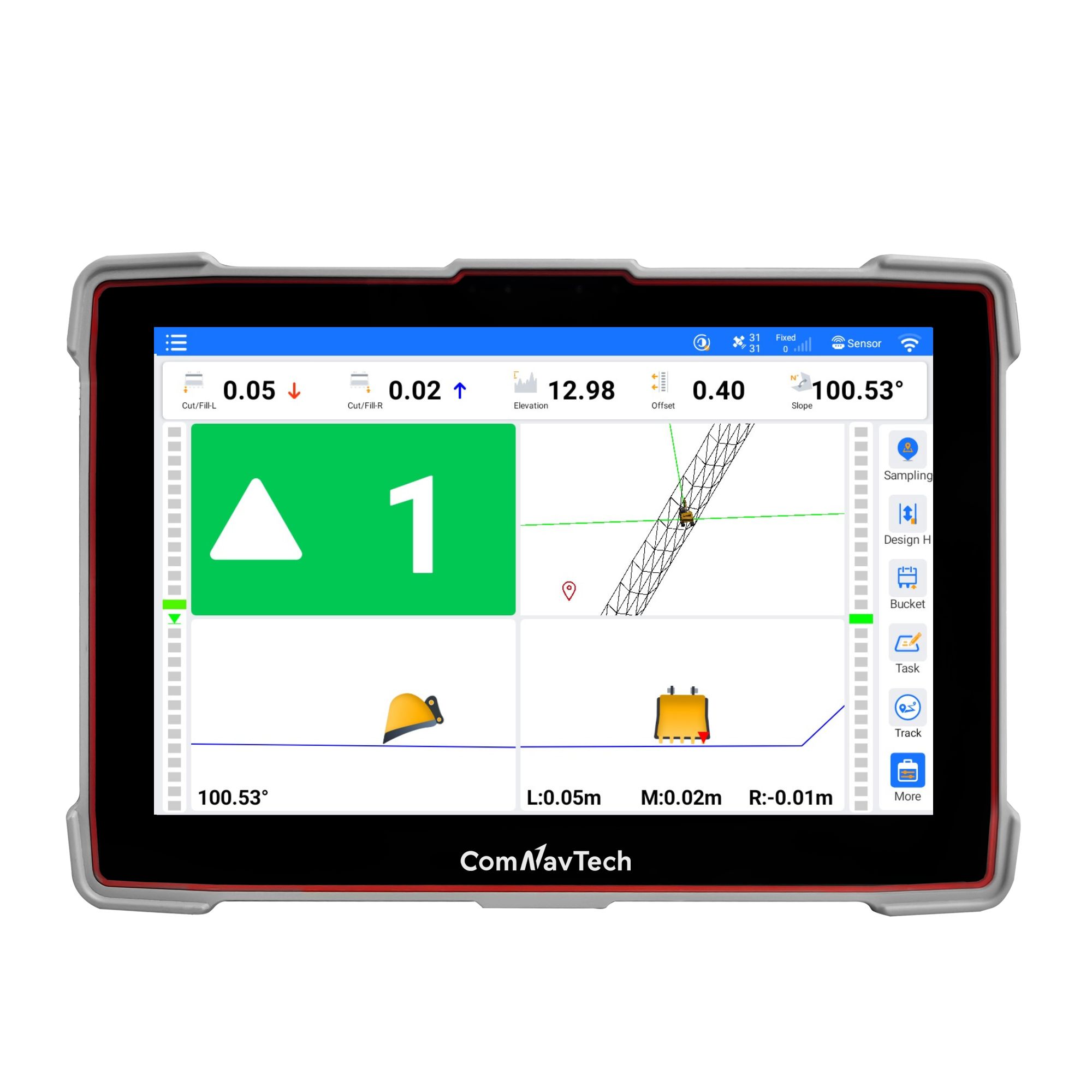

GNSS Tablet

-Aluminium magnesium alloy shell with IP67 dustproof and waterproof -Sunlight readable capacitive screen -High resolution LCD display
RTK Base (Optional)

- Portable design with up to 15km working range - Support full-constellation multi-frequency tracking with 1590 channels

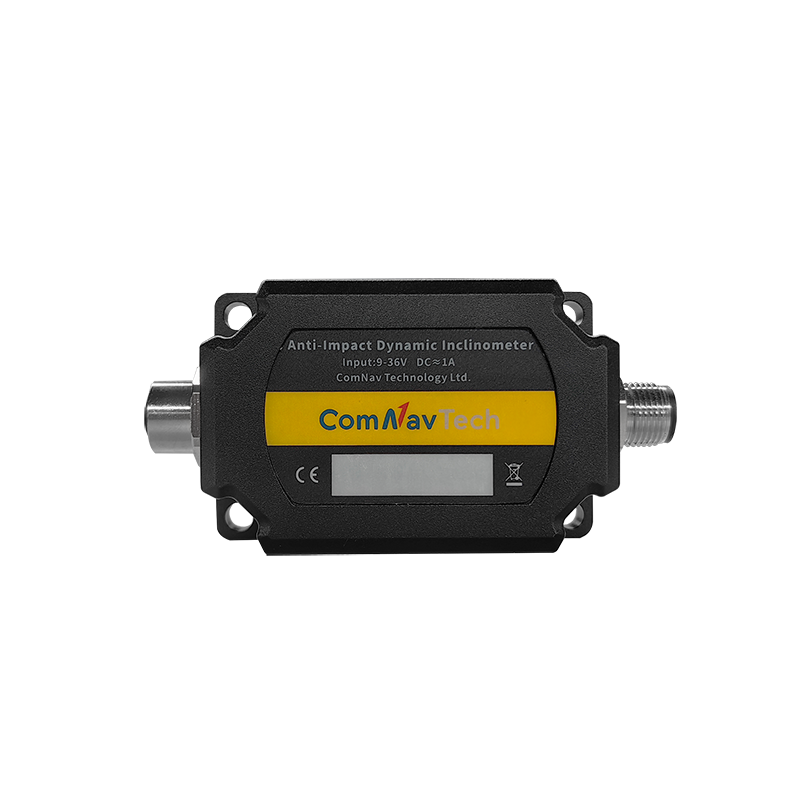

Sensor

- Biax gyroscope with great measuring range - Wide temperature operation(-40~+85°C) - IP68 rugged design, shock-resistance

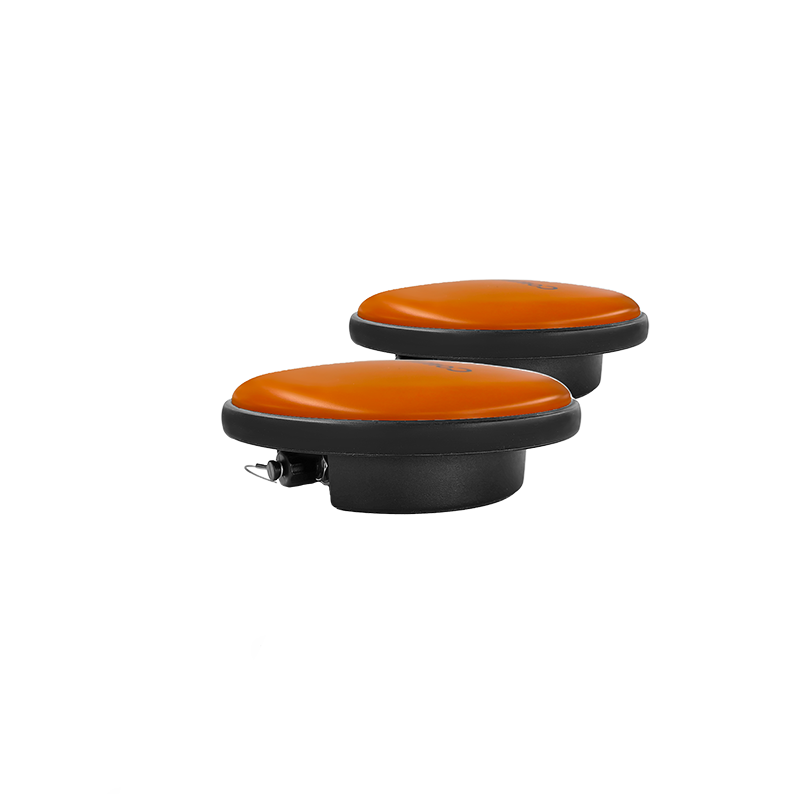

GNSS Antenna

- Full-constellation multi- frequency racking stable signal - Quick and convenient to install
