Introduction

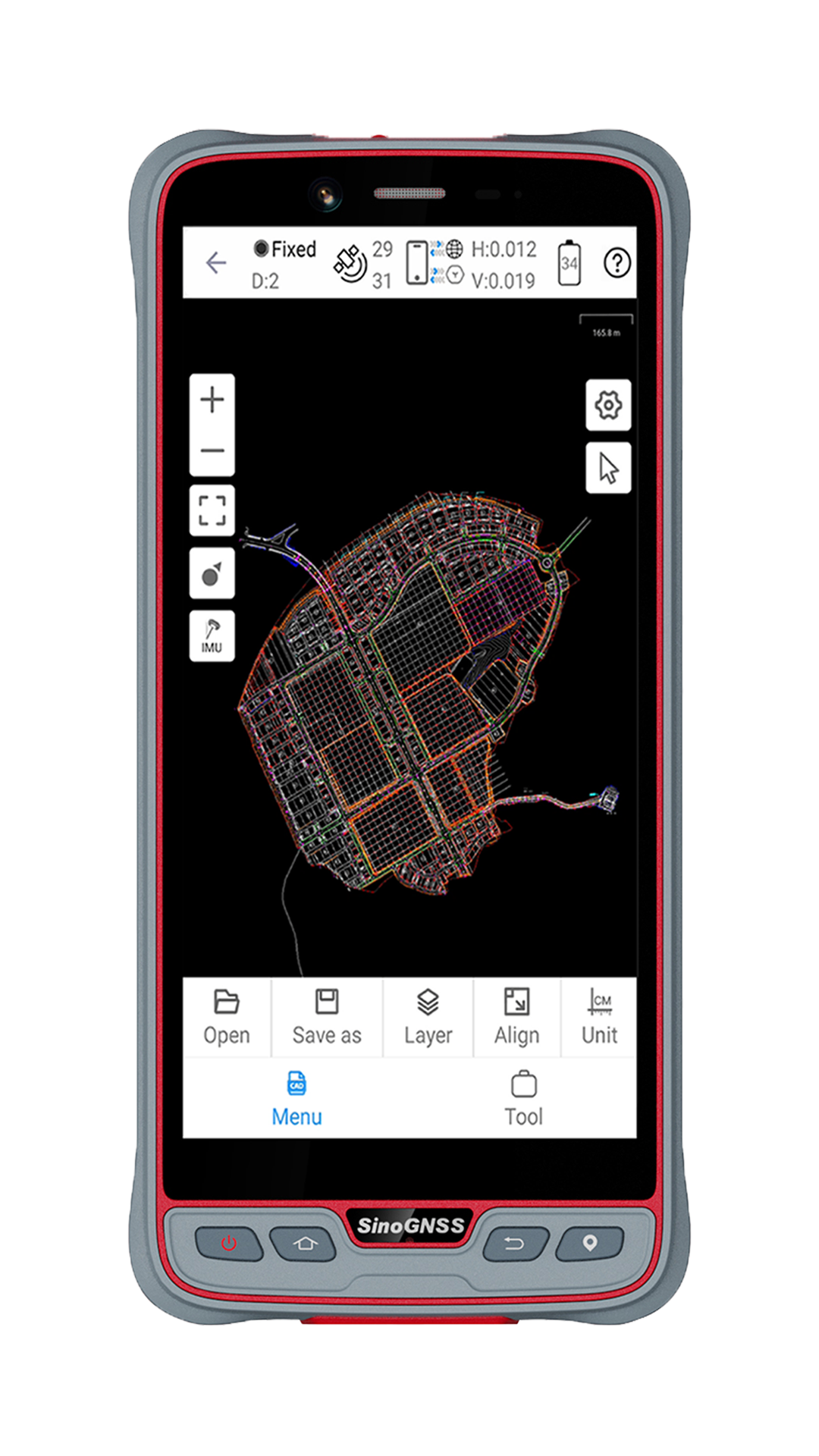

The P6C Data Collector is a rugged Android 12.0 data collector powered by an MT8786 CPU. It features a 6" sunlight-readable screen, IP67 dustproof & waterproof, and survives 1.5m drops. With 4GB RAM and 64GB ROM, it ensures strong field performance.


  • Android 12.0 Operating System
  • 6”Sunlight Readable Screen
  • 4+64 GB Memory
  • Integrated 4G LTE, WIFI and Bluetooth 5.1 BLE
  • IP67 Dustproof and Waterproof
  • Front Dual Stereo 90dB±3dB
  • Handheld Design
01
Android 12
Powered by MT8786 and running on Android 12.0, the P6C delivers exceptional performance. With 4GB of RAM and 64GB of ROM, there's plenty of space for your data, and the Micro SD card slot allows for expansion up to 512GB.
02
IP67 Certified
With IP67 dustproof & waterproof, P6C is completely workable even in hash environment. Featuring a robust design that survives from a 1.5m drop onto the concrete, it stays productive in extreme conditions.
03
6"Sunlight Readable Screen
The 6’’ display with 720*1080 resolution, ensuring clear readability even in sunlight. It supports capacitive multi-touch with up to 5 touch points, allowing for more flexible and intuitive operation.
Product Parameter
Performance
Physical
Communications
Sensors
Performance
CPUMT8786
Operating SystemAndroid 12.0
ROM64GB(128GB optional)
RAM4GB(6GB, 8GB optional)
Extension

1 Mirco SD card slot up to 512G

Rear Camera13M
Front Camera5M
Battery

7000mAh built-in battery

16 hours continuously working

Physical
Size181mm x 83mm x 17.4mm
Weight330g
LCD

6"HD screen,

720*1080 resolution

Touch ScreenCapacitive muti-touch, 5 points
Flash LightY
MicrophoneY
Speaker

Front dual stereo

90dB±3dB (at 10cm)

ChargingQuick Charge
Keypad1*Power, 1*HOME, 1*Return, 1*Position
Work Temperature-25°C ~60°C
Storage Temperature-40°C ~70°C
Waterproof & DustproofIP67
Drop TestSurvive from a 1.5m drop
Electrostatic Protection

± 15kv air discharg

± 8kv contact discharge

Humidity0% ~ 95% non-condensing
Communications
WIFI

IEEE 802.11 a/b/g/n/ac,

2.4GHz/5GHz

SIM Card

2 Nano-SIM Card slots

Dual SIM & Dual Standby

Network

FDD-LTE: B1/B3/B5/B7/B8

TDD-LTE: B38/B40

WCDMA: B1/B2/B5/B8

GSM: B3/B8

BluetoothBT 5.1 BLE
USBType C, support OTG
External InterfaceUSB, OTG
Sensors
G SensorY
MagnetometerY
Light Sensing SensorsY
Download
  • SinoGNSS P6C Data Collector_EN.pdf(1.13MB)
    2025-08-26
    DOWNLOAD
