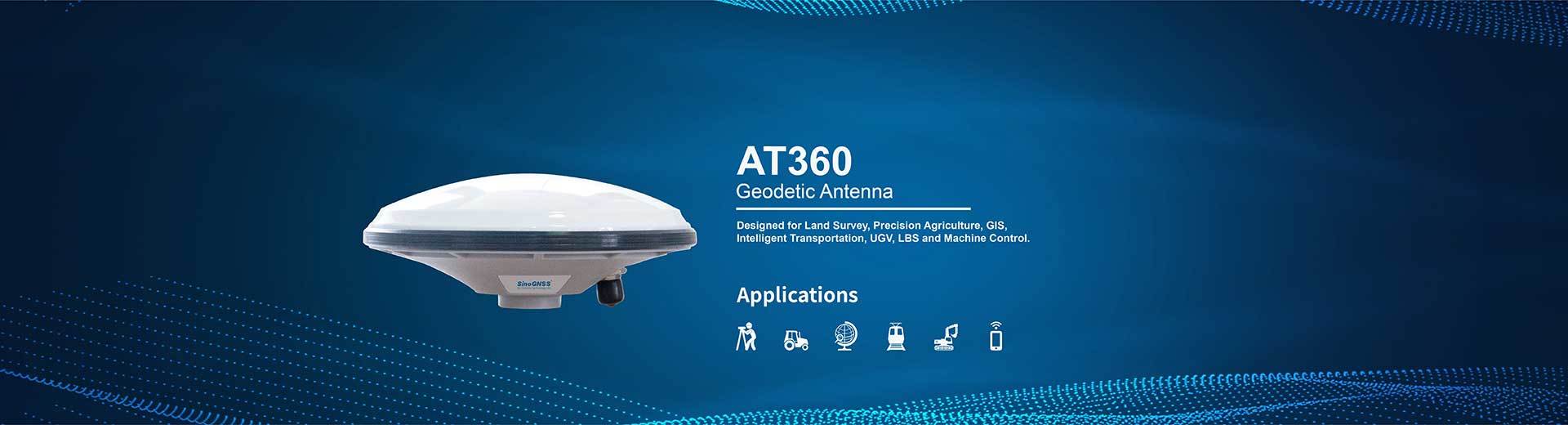

AT360 Geodetic Antenna

AT360 Geodetic Antenna

The AT360 is a super performance GNSS Antenna that can track GPS, GLONASS, BDS, Galileo, L-Band and SBAS. Featuring with high gain, low noise amplifier, high sensitivity and strong tracking capability, AT360 is a good choice for users to develop systems or solutions for land survey, agriculture, construction and deformation monitoring.

social media:

Features

01.Support GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3, Galileo E1/E5a/E5b, SBAS and L-Band

02.Low noise amplifier and high gain

03.Millimeter level phase center error with outstanding stability and repeatability

04.Strong capability of tracking satellites at low elevation angle

05.Superior waterproof and dustproof design

Specifications

Antenna

GPS:

L1, L2, L5

GLONASS:

L1, L2

BeiDou :

B1, B2, B3

Galileo:

E1, E5a, E5b

SBAS:

WAAS, EGNOS, MSAS, SDCM, GAGAN

L-Band:



Nominal Impedance:

50Ω

Polarization:

RHCP

Axial Ratio (90°):

≤ 3dB

LNA

LNA Gain:

40dB ± 2dB

Noise Figure:

≤ 2 dB

VSWR Output:

≤ 2.0

Operation Voltage:

3.3 - 15 VDC

Operation Current:

≤45mA

Passband Ripple:

± 2dB

Gain at Zenith:

5.5dBi

Phase Center Offset:

± 2mm

Physical

Dimension:

Φ147×67.7 mm

Connector:

TNC Female connector

Weight:

≤500 g

Operating Temperature:

-40℃ to +70℃

Storage Temperature:

-55℃ to +85℃

Humidity:

95% No-condensing

Waterproof and Dustproof:

IP67

Documents

SinoGNSS AT360 Geodetic Antenna

Release Date:2023-02-18

Version:Version:3.0
