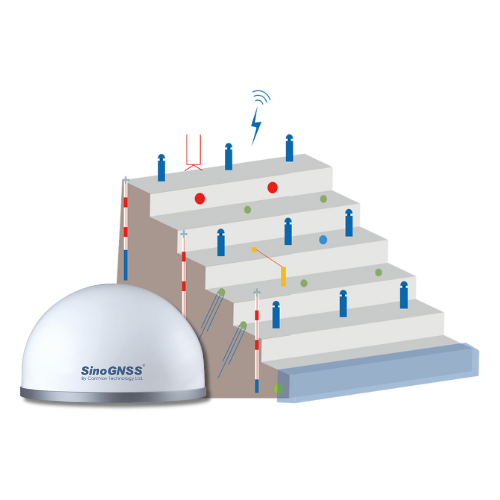

Introduction

Water conservancy and hydropower dams require significant investment and yield substantial benefits upon completion. However, their complex structures and operating environments, coupled with uncertainties in design, construction, and maintenance, mean that any unexpected deformation could lead to severe disasters. Continuous real-time monitoring of these dams is essential. It provides crucial safety assessments, ensures the safe operation of dams, and gathers valuable technical data to inform the design and construction of future projects.

Features

Millimeter Accuracy

Capable of tracking all running constellations, A300 receiver can reach millimeter-level positioning accuracy for precise monitoring.
Remote Monitoring

Benefit from flexible 4G/UHF transmission, users can check the positioning data and warning information anywhere and anytime.
Flexible Transmission

Supporting serial port/USB/UHF/ Bluetooth/4G communication media and TCP/IP, MQTT, Ntrip communication protocols.
24/7 Operation

Through strict quality control procedures, the MTBF of the A300 receiver can reach more than 50,000 hours for long-term trouble-free operation.
Multi-sensors

Supporting versatile external sensors for multi-sensor integrated monitoring, A300 can flexibly match different sensors according to different monitoring applications.
Easy Configuration

Partnered with Android-based SinoGNSS Navigate Master software, it is easy to configure A300 via Bluetooth connection.
Rugged Housing

Featuring IP68 proof level, anti-vibration and anti-lightning, the A300 receiver is not afraid of harsh working environments.
8GB Large Memory

Equipped with 8GB internal memory and loop recording function, the A300 can meet your data logging requirement for monitoring.

Software

CDMonitor

CDMonitor is a professional real-time GNSS data processing and monitoring software. Adopted with Kalman filter algorithm, the monitoring accuracy of CDMonitor is up to millimeter level. With the capability of real-time monitoring, remote management, strong data processing, early alerting, the CDMonitor can be widely used in monitoring applications such as mining monitoring, construction monitoring, dams & hydropower monitoring and geodetical disaster monitoring.

NaviCloud Platform

SinoGNSS NaviCloud Platform is an online analyzing monitoring platform, which includes real-time monitoring system, online analyzing & alerting system, device management system and database management system.

Solution Schematic Diagram

Advantage

High-Precision Real-Time Monitoring

The system offers high-precision, all-weather real-time monitoring and can predict dangerous situations in advance. It also supports automatic collection, processing, and storage of monitoring data.
Network & Remote Management

The system supports network management, remote system management, and automatic report generation.
24/7 Operation

Through strict quality control procedures, the MTBF of the A300 receiver can reach more than 50,000 hours for long-term trouble-free operation.
Early Alerting

Based on the real-time data monitoring, once the data exceed the threshold range, the system can perform sound & light alarms, SMS alarms and email alarms to remind relevant personnel to take measures.
