Viewing Technical Development from ComNav Technology T serie to N series GNSS Receiver


ComNav Technology has introduced 5 T series and N series GNSS receivers respectively since 2012. From T300 receiver to N5 receiver, both performance and functionality are improved as the continuous technological innovation. In this article we’ll tell you the differences between ComNav Technology’s T series and N series receiver.

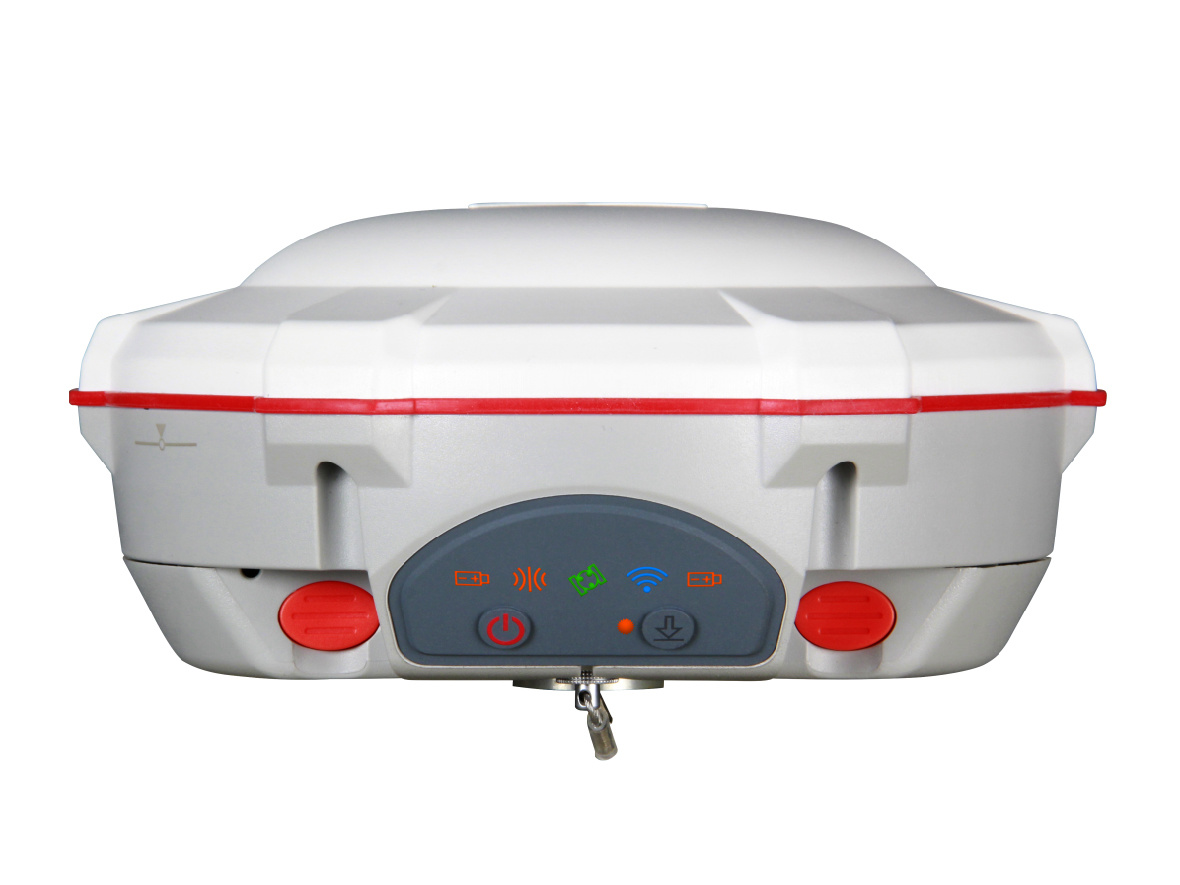

T300 GNSS receiver, released in 2013, is the first GNSS receiver of ComNav Technology. With reserved space for firmware upgrade, the performance of T300 is unrestricted to improve. It supports full-constellations signals, including the latest BeiDou Global signals.

On the basis of T300, T300 Plus adds the function of WIFI connection and up to 30° tilt compensation, providing more convenience to users. Regarding the WIFI function, T300 Plus also supports webpage for configuration, which can be used as base station for UAV mapping.

In order to satisfy increased demands of users, T30 GNSS receiver was released. Besides the full function as T300 Plus, the reinforced Magnesium-Aluminum alloy shell and large battery capacity of 6800 mAh ensures a longer working time in harsh working environments. Coupled with smaller size and L-Band tracking capability, T30 can be used in a wider range of applications.

As a high-end version of T30, T30 IMU’s performance is improved by in-built IMU module. Easier initialization and up to 60° tilt compensation with 2cm accuracy provides more possibilities in harsh environments.

Aiming at providing a best-in-class high-end GNSS receiver, ComNav Technology introduced N5 IMU GNSS receiver recently. N5 is enhanced not only in functions but design. N5 adds an OLED display for more convenient user interaction, offering better experience of monitoring and simple configuration.

Have you got the differences between all our T/N series GNSS receivers now? The detailed differences are illustrated in the following table. Find the most suitable GNSS receiver for you!



Specifications

T300

T300 Plus

T30

T30 IMU

N5

Channels

572

572

574

574

574

Signal Tracking

- GPS

- BeiDou

- BeiDou Global

- GLONASS

- Galileo

- SBAS

- QZSS

- GPS

- BeiDou

- BeiDou Global

- GLONASS

- Galileo

- SBAS

- QZSS

- GPS

- BeiDou

- BeiDou Global

- GLONASS

- Galileo

- SBAS

- QZSS, IRNSS

- L-Band

- GPS

- BeiDou

- BeiDou Global

- GLONASS

- Galileo

- SBAS

- QZSS, IRNSS

- L-Band

- GPS

- BeiDou

- BeiDou Global

- GLONASS

- Galileo

- SBAS

- QZSS, IRNSS

- L-Band

Tilt Compensation

/

30° tilt sensor

30° tilt sensor

60° IMU

60° IMU

Communication

- 1 serial port

- UHF

- 4G

- Bluetooth

- 1 serial port

- UHF

- 4G

- Bluetooth

- WIFI

- 1 serial port

- UHF

- 4G

- Bluetooth

- WIFI

- 1 serial port

- UHF

- 4G

- Bluetooth

- WIFI

- 1 serial port

- UHF

- 4G

- Bluetooth

- WIFI

Size

15.8 cm× 7.5 cm

15.8 cm× 7.5 cm

15.5 cm× 7.3 cm

15.5 cm× 7.3cm

15.5 cm× 7.3 cm

Power Consumption

3.1W

3.1W

2.4W

2.7W

2.7W

Li-ion Battery

2 × 2000 mAh

2 × 2000 mAh

2 × 3400 mAh

2 × 3400 mAh

2 × 3400 mAh

Status Monitoring

5 LEDs

5 LEDs

5 LEDs

5 LEDs

2 LEDs,

1 OLED Display

More Information

Click Here

Click Here

Click Here

Click Here

Click Here
