K803 Lite Smooth Positioning Solution for Precision Agriculture

K803 Lite Smooth Positioning Solution for Precision Agriculture

With full-constellation tracking, low power design, DP-filter smooth positioning capabilities, the K803 Lite GNSS board is an ideal solution for precision agriculture, machine guidance and other system integrations.

SOLUTION

With full-constellation tracking, low power design, DP-filter smooth positioning capabilities, the K803 Lite GNSS board is an ideal solution for precision agriculture, machine guidance and other system integrations.



CORE TECHNOLOGY

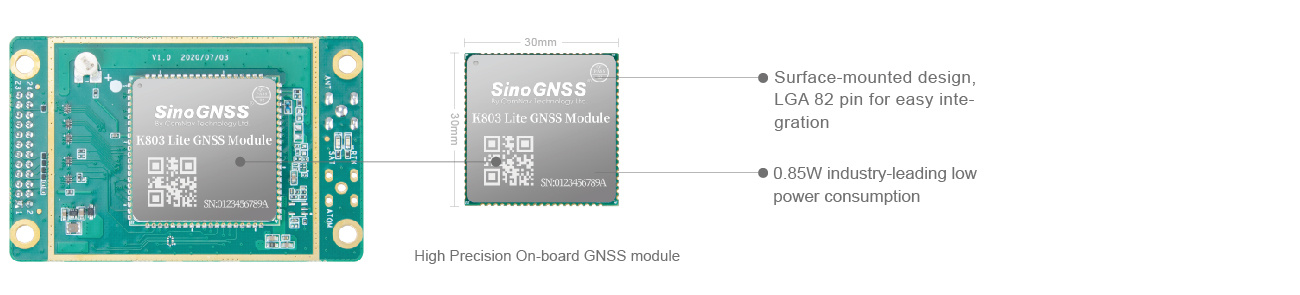

Embedded with QUANTUM III SoC chip, the K803 Lite is capable of

tracking all running and planned constellations, improving the availability

and reliability of GNSS positioning.

The K803 Lite module largely reduces the sudden position jumps

via DP-filter algorithm, providing a smooth positioning trajectory

in single-point positioning mode.


DP-filter
Pass-to-pass

Based on the GNSS signal carrier phase and Doppler observations,

the K803 Litecan provide a smooth and accurate trajectory without

GNSS correction data input.  Theoretically, the velocity accuracy of the

moving carriers calculated via Doppler frequency shift can reach 1cm/s,

which is ideal for some dynamic applications.

Pass-to-pass error is based on the position offset between the

desired track spacing and the actual track spacing calculated by

GNSS receivers. Over a 15-minute time window, 95% of the

pass-to-pass error of K803 Lite  is within 12cm,

and the overall error value is within 15cm.

PASS-TO-PASS ACCURACY

Taking full advantage of single-frequency GNSS carrier phase and Doppler



observation,K803 Lite provides a smooth and accurate pass-to-pass solution

for relevant applications. With the help of the DP-filter algorithm, the relative

accuracy of K803 Lite between 2 consecutive epochs is within 1cm in

single point positioning mode.

For longer periods like 15-30 min, the pass-to-pass accuracy can

15cm in 95% of the cases.

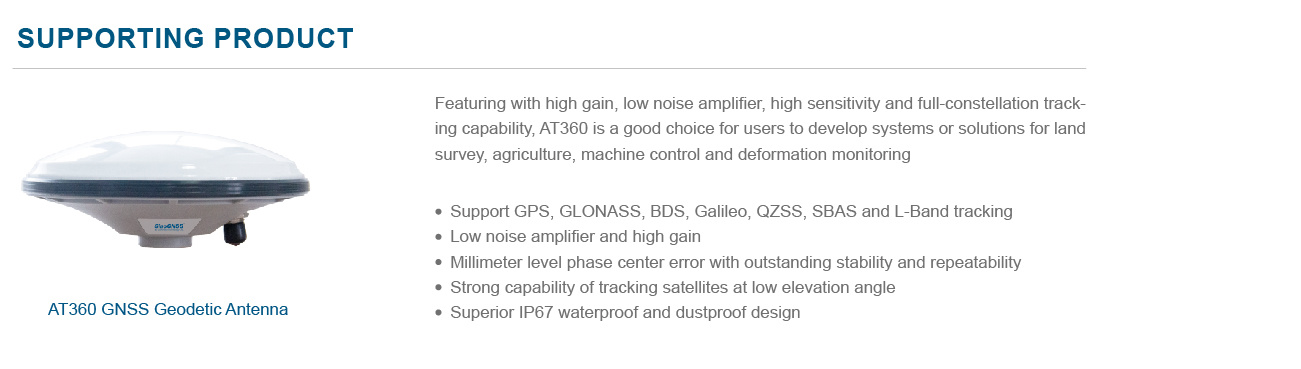

SUPPORT PRODUCT

Featuring with high gain, low noise amplifier, high sensitivity and full-con-stellation tracking capability,

AT360 is a good choice for users to develop systems or solutions for land survey, agriculture, machine

control and deformation monitoring.

  • Support GPS, GLONASS, BDS, Galileo, QZSS, SBAS and L-Band tracking
  • Low noise amplifier and high gain
  • Millimeter level phase center error with outstanding stability and repeatability
  • Strong capability of tracking satellites at low elevation angle
  • Superior IP67 waterproof and dustproof design

APPLICATION

Application Industry

Precision Agriculture

GNSS technologies were largely used in farming for auto guidance, auto leveling and other applications.
View Detail +

Machine Control

ComNav offers professional high-accuracy positioning solutions for multiple machine control applications.
View Detail +

Related Products

K803 GNSS OEM module

The K803 is a full-constellation triple-frequency GNSS OEM board with IMU module featuring superior performance and compact design.It's designed specifically for UAV, robotic systems, marine systems, deformation monitoring, land survey, portable terminals, Internet of Things, GBAS, personnel positioning, GIS, and machine control.

AT360 Geodetic Antenna

The AT360 is a super performance GNSS Antenna that can track GPS, GLONASS, BDS, Galileo, L-Band and SBAS. Featuring with high gain, low noise amplifier, high sensitivity and strong tracking capability, AT360 is a good choice for users to develop systems or solutions for land survey, agriculture, construction and deformation monitoring.

Documents

SinoGNSS_Professional_Smooth_Positioning_Solution

Release Date:2023-02-21
