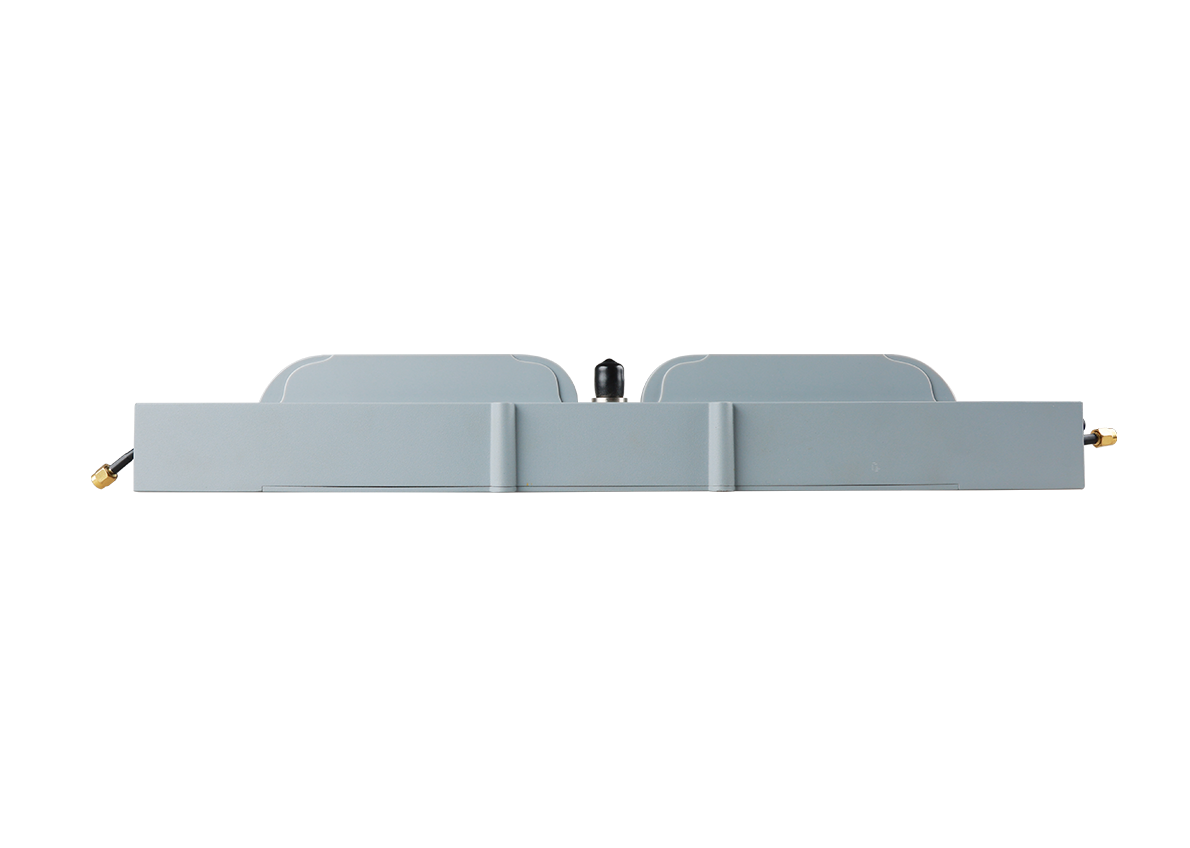

A200 Dual Antenna Heading Receiver

A200 Dual Antenna Heading Receiver

As a high-precision integrated GNSS positioning and heading receiver, A200 can track all existed and planned constellations, providing high-precision positioning and heading data for users.A200 is designed specifically for precision agriculture, machine control, fleet management, robot, and other industries.

social media:

Features

01.Dual-antenna design for high-precision heading and positioning

02.Tracking all running and planned constellations, including GPS, BDS, GLONASS, Galileo, QZSS and SBAS

03.Advanced QUANTUMTM Technology

04.Built-in datalink with low power consumption and long working range

05.IP67 waterproof and dustproof

06.Compact design, light weight, easy to install



1

Full-constellation tracking

The A200 is an advanced generation high-precision integrated GNSS positioning and heading receiver, featuring 1226 channels for tracking all running and planned constellations, including GPS, BDS, GLONASS, Galileo, QZSS and SBAS.

1

Onboard IMU for Reliable Navigation

With the third generation IMU, A200 can provide continuous and high-quality data in the harsh environments even if signal loss.

1

IP67

A200 is more compact and smaller than its rivals, which makes it easy to install. Meanwhile, it is IP67 waterproof and dustproof, making it suitable for various harsh environments.

Specifications

Performance

Channels

1226

Positioning

GPS: L1 C/A, L2C,L2P

BDS: B1I, B2I, B1C, B2b

GLONASS: G1, G2

Galileo: E1, E5b

QZSS: L1C/A, L2C

SBAS: L1C/A

Heading

GPS: L1 C/A, L2C,L2P

BDS: B1I, B2I, B1C, B2b

GLONASS: G1, G2

Galileo: E1, E5b

QZSS: L1C/A, L2C

Post Processing

Horizontal: 2.5 mm + 1 ppm
Vertical: 5 mm + 1 ppm

Single Baseline RTK

Horizontal: 8 mm+1 ppm
Vertical: 15 mm+ 1 ppm

DGPS

0.4 m 3D RMS

SBAS 1 m 3D RMS
Velocity Accuracy

≤0.02 m/s (PDOP≤4)

Heading Accuracy

(0.15/R)°

Roll or Pitch Accuracy (0.25/R)°

Physical

Dimension

460 mm × 38 mm x 58 mm

Weight

627g

Working Temperature

-30 ℃ to + 65 ℃

Storage Temperature

-30 ℃ to + 65 ℃

Humidity

100% No-condensation

Waterproof and Dustproof

IP67

Shock

Designed to survive a 2 m drop onto concrete

Housing

Aluminum-magnesium alloy housing

External power supply DC 4.5-12v

Power Consumption

2.6W

Communication Interface
1 serial port and 1 USB port
(7-pin Lemo connector)
Datalink

Tx/Rx with full frequency range from

410-470 MHz

- Transmit power: 0.5-2 W adjustable

- Baud rates: 19.2kbps, 9.6kbps

- transmission protocol:

 transparent transmission, TT450S/

 SOUTH/MAC

(Super-long range module is optional)

Documents

SinoGNSS A200 Dual Antenna Heading Receiver

Release Date:2023-04-25
