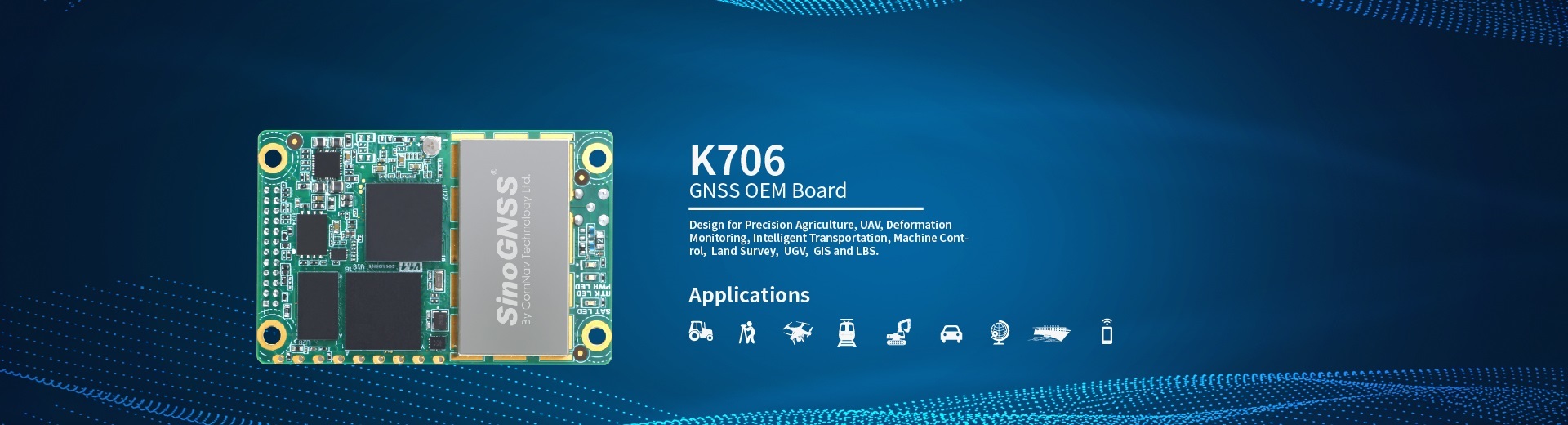

K706 GNSS OEM Board (EOL)
The K706 is a full-constellation dual-frequency GNSS OEM board with abundant interfaces and 8 GB onboard memory, that delivers reliable high precision positions specially for unmanned systems.
social media:
Features
01.GPS L1/L2, BeiDou B1/B2, GLONASS L1/L2, Galileo E1/E5b,QZSS
02.DP-Filter Smooth Function
03.Advanced QUANTUM Technology
04.WebServer Service
05.8 GB Onboard Memory
06.Easy to Integrate
Full-constellation & muti-frequency
The K706 is a full-constellation, dual-frequency GNSS OEM board, tracking GPS L1/L2, BeiDou B1/L2, GLONASS L1/L2, Galileo and SBAS.
Abundant interfaces
The K706 provides abundant interface, including LV-TLL ports, Ethernet, USB, CAN Bus, PPS, Event mark, to meet your various integration and application demanding.
8 GB onboard memory
The K706 support 8GB internal memory, users can via it record static raw data or PPK data for storage.
Specifications
|
Performance |
Signal tracking Channels: |
352 Channels |
|
Satellite tracking: |
GPS, BeiDou, GLONASS, Galileo and SBAS |
|
|
RTK Horizontal accuracy: |
8mm+1ppm |
|
|
RTK Vertical accuracy: |
15mm+1ppm |
|
|
Post Processing Horizontal accuracy: |
2.5mm+0.5ppm |
|
| Post Processing Vertical accuracy: | 5mm+0.5ppm | |
| Initialization time: | less than 10s | |
|
Physical |
Size (L x W x H) |
71mm × 46mm × 9mm |
|
I/O interface: |
2 × 12 pin male connector |
|
|
Antenna connector: |
1 × MCX female, 50 Ω |
|
|
Weight: |
26.6g |
|
|
Humidity: |
95% no condensation |
|
|
Operating temperature |
-40 °C to + 85 °C |
|
|
Storage temperature |
-55 °C to + 95 °C |
|
|
Power consumption: |
1.68 W |
|
|
External power input: |
3.3 - 5.5 VDC |
|
| Memory (Optional): | 8 GB | |
|
Communications |
3 LV-TTL & 1 RS232 ports: |
Baud rates up to 921600bps |
|
Correction data I/O: |
RTCM 2.X, 3.X, CMR, CMR+ |
|
|
Position data output rates: |
1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz, 50Hz |
|
|
1 LAN port: |
Webserver Function |
|
|
2 Event Marker input |
|
|
| 1 Pulse Per Second output | ||
|
2 CAN BUS (reserved) |
|
|
