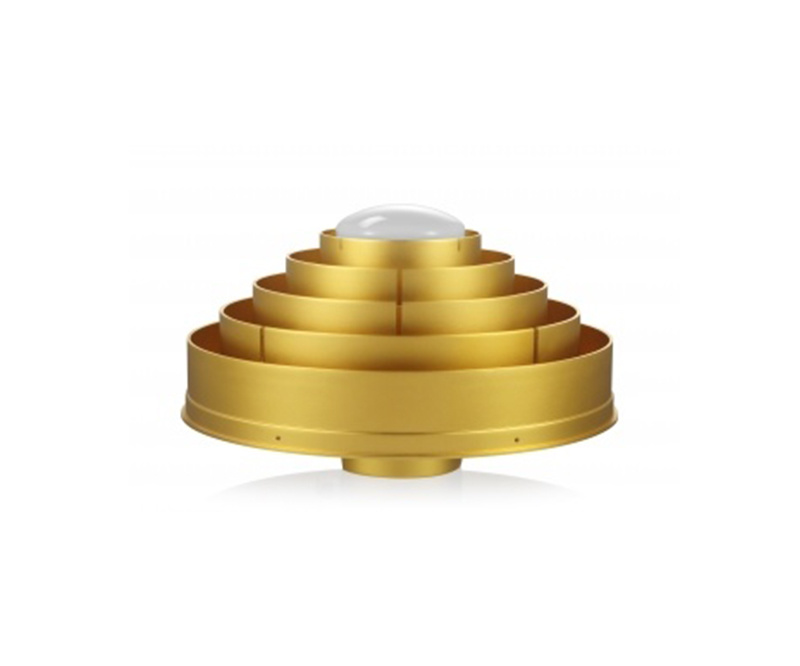

AT600 Choke Ring Antenna
social media:
Features
01.Support BeiDou B1/B2/B3, BeiDou Global B1C/ B2a, GPS L1/L2/L5, GLONASS L1/L2, Galileo E1/E5a/E5b/E6, IRNSS, QZSS, SBAS and L-Band
02.3D chock ring structure design with excellent multipath rejection capability
03.Low noise amplifier to improve anti-interference performance
04.Sub-millimeter level phase center error with outstanding stability and repeatability
05.High gain for strong low elevation angle signal tracking capability
06.Superior IP68 waterproof and dustproof level make it capable for work in harsh environment
Specifications
Antenna |
Beidou: |
B1, B2, B3 |
BeiDou Global: |
B1C, B2a |
|
GPS: |
L1, L2, L5 |
|
GLONASS: |
L1, L2 |
|
Galileo: |
E1, E2, E5a, E5b, E6 |
|
Nominal Impedance: |
50Ω |
|
Polarization: |
RHCP |
|
Axial Ratio (90°): |
≤ 2dB |
|
LNA |
LNA Gain: |
≥ 50dB |
Noise Figure: |
≤ 1.8 dB |
|
VSWR Output: |
≤ 2.0 |
|
Operation Voltage: |
3.3 - 12VDC |
|
Operation Current: |
≤ 60mA |
|
Group Delay: |
< 5ns |
|
Passband Ripple: |
±1.5dB |
|
Gain at Zenith: |
5dBi |
|
Phase Center Offset: |
≤ 1.5mm |
|
Physical |
Dimension: |
Φ379.5×296.5mm |
Connector: |
TNC-K |
|
Weight: |
< 8.5kg |
|
Operating Temperature: |
-40℃ to +85℃ |
|
Storage Temperature: |
-55℃ to +85℃ |
|
Humidity: |
95% No-condensing |
|
Water and Dust Proof: |
IP68 |
|
Drop: |
Survive from 1meter drop |
|
Calibration: |
NGS, IGS |
